IRI ENSO Forecast
IRI Technical ENSO Update
Published: June 16, 2016
Note: The SST anomalies cited below refer to the OISSTv2 SST data set, and not ERSSTv4. OISSTv2 is often used for real-time analysis and model initialization, while ERSSTv4 is used for retrospective official ENSO diagnosis because it is more homogeneous over time, allowing for more accurate comparisons among ENSO events that are years apart. During ENSO events, OISSTv2 usually shows stronger anomalies than ERSSTv4, and during very strong events the two datasets may differ by as much as 0.5 C.
Recent and Current Conditions
The strong 2015-16 El Niño of 2015-16 has ended. The latest weekly SST anomaly in the NINO3.4 region is at 0.1 C during mid-June, and was just barely below zero for the two previous weeks. For May 2016 the average NINO3.4 SST anomaly was 0.30 C, indicative of warm-neutral ENSO conditions, and for Mar-May it was 1.02 C, in the lower portion of the moderate El Niño category. The IRI’s definition of El Niño, like NOAA/Climate Prediction Center’s, requires that the SST anomaly in the Nino3.4 region (5S-5N; 170W-120W) exceed 0.5 C. Similarly, for La Niña, the anomaly must be -0.5 C or less. The climatological probabilities for La Niña, neutral, and El Niño conditions vary seasonally, and are shown in a table at the bottom of this page for each 3-month season. Accompanying the most recent anomaly of 0.1 C in the Nino3.4 region, a generally neutral condition is observed in the atmosphere, including weak lower-level wind anomalies and weak convection anomalies across the equatorial Pacific. The upper-level wind anomalies have become westerly, indicative of La Niña, but only in the western portion of the Pacific basin. The Southern Oscillation Index (SOI) and the equatorial SOI have also been near zero, indicating neutral ENSO conditions.
Expected Conditions

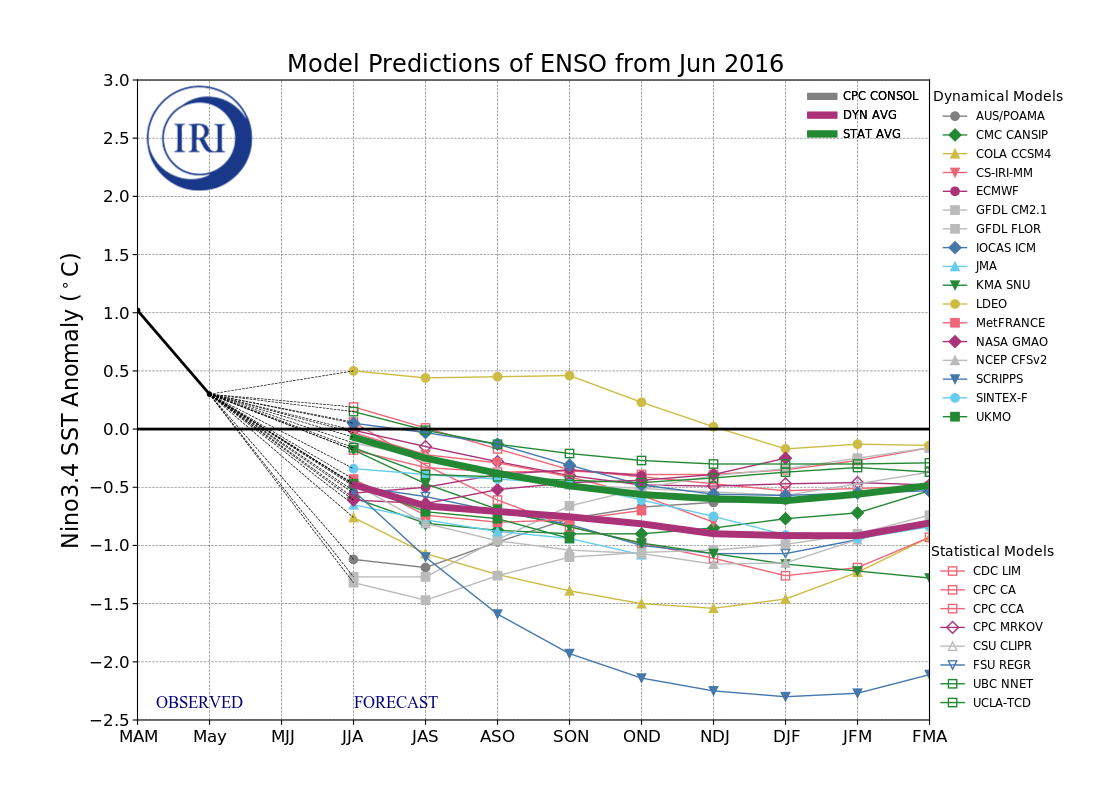

What is the outlook for the ENSO status going forward? The most recent official diagnosis and outlook was issued one week ago in the NOAA/Climate Prediction Center ENSO Diagnostic Discussion, produced jointly by CPC and IRI; it called for neutral ENSO conditions currently in early summer 2016, with La Niña development quite possible during summer and around 75% likely for the fall and winter 2016-17. The latest set of model ENSO predictions, from mid-June, now available in the IRI/CPC ENSO prediction plume, is discussed below. Currently, the Nino3.4 SST anomalies are in the ENSO-neutral category, but subsurface temperature anomalies across the eastern equatorial Pacific are below average so that the SST is poised to fall into the cool-neutral range for later June and early July, and then more likely below average in the months of late summer through the remainder of the year. In the atmosphere, the SOI and the pattern of anomalous convection have become neutral, while the upper-level winds are mildly indicative of La Niña and the lower-level winds are neutral. Together, the oceanic and atmospheric features reflect ENSO-neutral conditions for late May through mid-June. By early July, the Niño3.4 anomaly will likely be negative, but might be still in the ENSO-neutral category, and during the course of July through early August it could decrease to below -0.5 C, in the weak La Niña range.
As of mid-June, 4% of the dynamical or statistical models models predicts El Niño SST conditions, 60% predicts neutral conditions, and 35% predicts La Niña conditions for the initial Jun-Aug 2016 season. At lead times of 3 or more months into the future, statistical and dynamical models that incorporate information about the ocean’s observed subsurface thermal structure generally exhibit higher predictive skill than those that do not. For the Sep-Nov 2016 season, among models that do use subsurface temperature information, 35% predicts ENSO-neutral conditions and 65% predicts La Niña conditions. For all model types, the probabilities for La Niña are 52% for Jul-Sep, and between approximately 55% and 65% from Aug-Oct to Jan-Mar 2017, and drop to 50% for Feb-Apr 2017. Except for Jun-Aug, probabilities for El Niño are predicted at zero.
Note – Only models that produce a new ENSO prediction every month are included in the above statement.
Caution is advised in interpreting the distribution of model predictions as the actual probabilities. At longer leads, the skill of the models degrades, and skill uncertainty must be convolved with the uncertainties from initial conditions and differing model physics, leading to more climatological probabilities in the long-lead ENSO Outlook than might be suggested by the suite of models. Furthermore, the expected skill of one model versus another has not been established using uniform validation procedures, which may cause a difference in the true probability distribution from that taken verbatim from the raw model predictions.
An alternative way to assess the probabilities of the three possible ENSO conditions is more quantitatively precise and less vulnerable to sampling errors than the categorical tallying method used above. This alternative method uses the mean of the predictions of all models on the plume, equally weighted, and constructs a standard error function centered on that mean. The standard error is Gaussian in shape, and has its width determined by an estimate of overall expected model skill for the season of the year and the lead time. Higher skill results in a relatively narrower error distribution, while low skill results in an error distribution with width approaching that of the historical observed distribution. This method shows probabilities for La Niña at 37% for Jun-Aug 2016, , 57% for Jul-Sep, and rising to between about 60% and 65% from Aug-Oct through Feb-Apr 2017. Model probabilities for neutral ENSO conditions are between 30% and 35% from Sep-Nov through Jan-Mar 2017, while probabilities for El Niño are 6% or lower throughout the forecast period. A plot of the probabilities generated from this most recent IRI/CPC ENSO prediction plume using the multi-model mean and the Gaussian standard error method summarizes the model consensus out to about 10 months into the future. The same cautions mentioned above for the distributional count of model predictions apply to this Gaussian standard error method of inferring probabilities, due to differing model biases and skills. In particular, this approach considers only the mean of the predictions, and not the total range across the models, nor the ensemble range within individual models.
In summary, the probabilities derived from the models on the IRI/CPC plume describe, on average, a likelihood for La Niña conditions increasing to greater than 50% from Jul-Sep through early 2017, but never more than about 65% during fall and through mid-winter 2016-17. A caution regarding this latest set of model-based ENSO plume predictions, is that factors such as known specific model biases and recent changes that the models may have missed will be taken into account in the next official outlook to be generated and issued in early October by CPC and IRI, which will include some human judgement in combination with the model guidance.
Climatological Probabilities
Season |
La Niña |
Neutral |
El Niño |
DJF |
36% |
30% |
34% |
JFM |
34% |
38% |
28% |
FMA |
28% |
49% |
23% |
MAM |
23% |
56% |
21% |
AMJ |
21% |
58% |
21% |
MJJ |
21% |
56% |
23% |
JJA |
23% |
54% |
23% |
JAS |
25% |
51% |
24% |
ASO |
26% |
47% |
27% |
SON |
29% |
39% |
32% |
OND |
32% |
33% |
35% |
NDJ |
35% |
29% |
36% |
IRI/CPC Mid-Month Model-Based ENSO Forecast Probabilities
Season |
La Niña |
Neutral |
El Niño |
JJA 2016 |
37% |
62% |
1% |
JAS 2016 |
57% |
42% |
1% |
ASO 2016 |
59% |
38% |
3% |
SON 2016 |
61% |
35% |
4% |
OND 2016 |
63% |
31% |
6% |
NDJ 2016 |
63% |
31% |
6% |
DJF 2016 |
65% |
31% |
4% |
JFM 2017 |
65% |
32% |
3% |
FMA 2017 |
62% |
37% |
1% |
